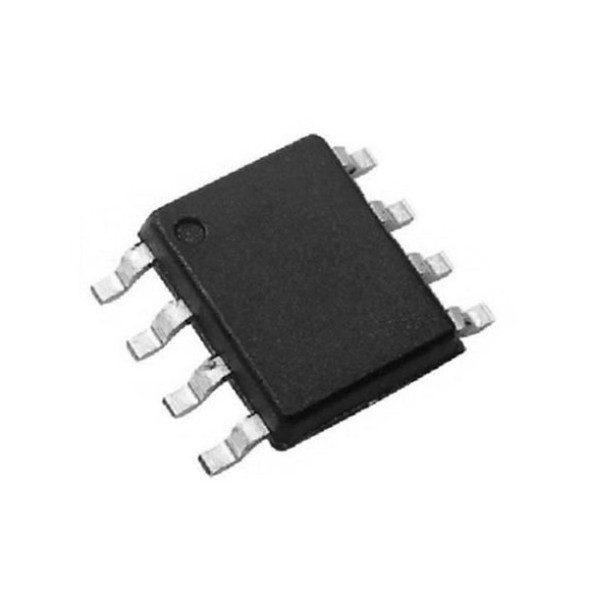

HALF-BRIDGE DRIVER
Features
• Floating channel designed for bootstrap operation
to +600V. Tolerant to negative transient voltage
dV/dt immune
•• Gate drive supply range from 10 to 20V
• Under voltage lockout for both channels• 3.3V, 5V, and 15V input logic input compatible
• Cross-conduction prevention logic
• Matched propagation delay for both channels
Lower di/dt gate driver for better noise immunity
•• Internal 100ns dead-time
• Output in phase with inputAvailable in Lead-Free
Description
The IR2304(S) are a high voltage, high speed
power MOSFET and IGBT driver with inde-
pendent high and low side referenced output
channels. Proprietary HVIC and latch immune
CMOS technologies
enable ruggedized monolithic construction.
The logic input is compatible with standard
CMOS or LSTTL output, down to 3.3V logic.
The output driver features a high pulse cur-
rent buffer stage designed for minimum driver
cross-conduction. The floating channel can be
d to drive an N-channel power MOSFET
use
or IGBT in the high side configuration which
operates up to 600 volts.
- IR2304(S).pdf (139.24 KBytes)
